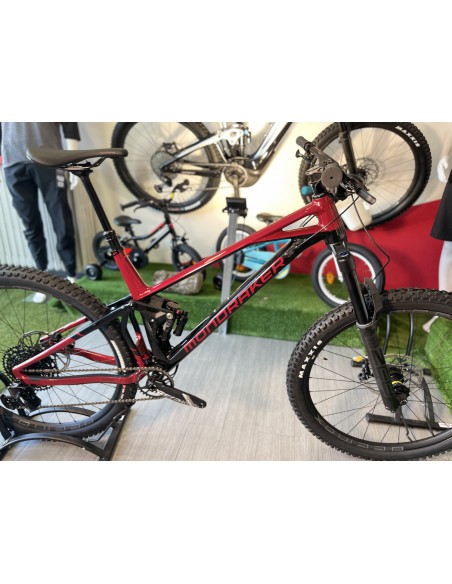

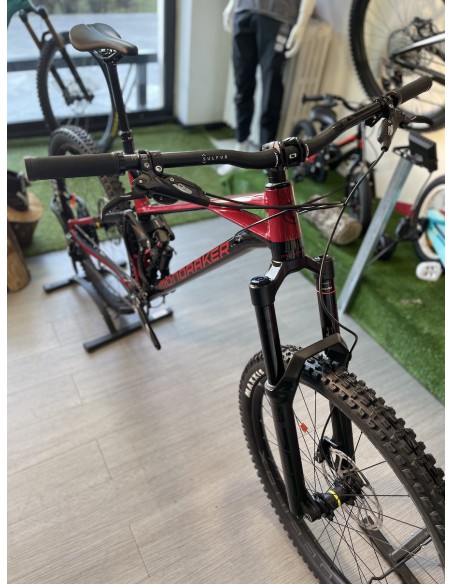

Mondraker Superfoxy 2022

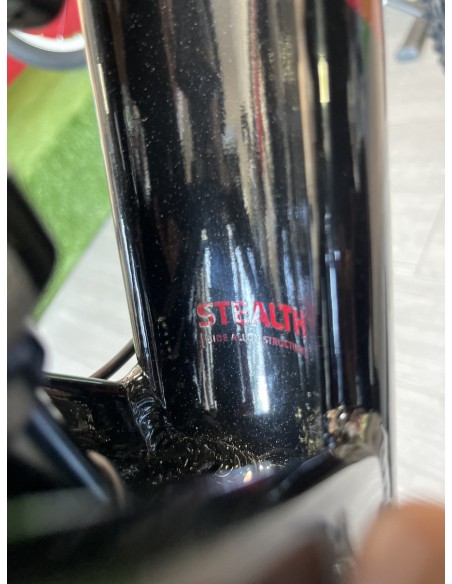

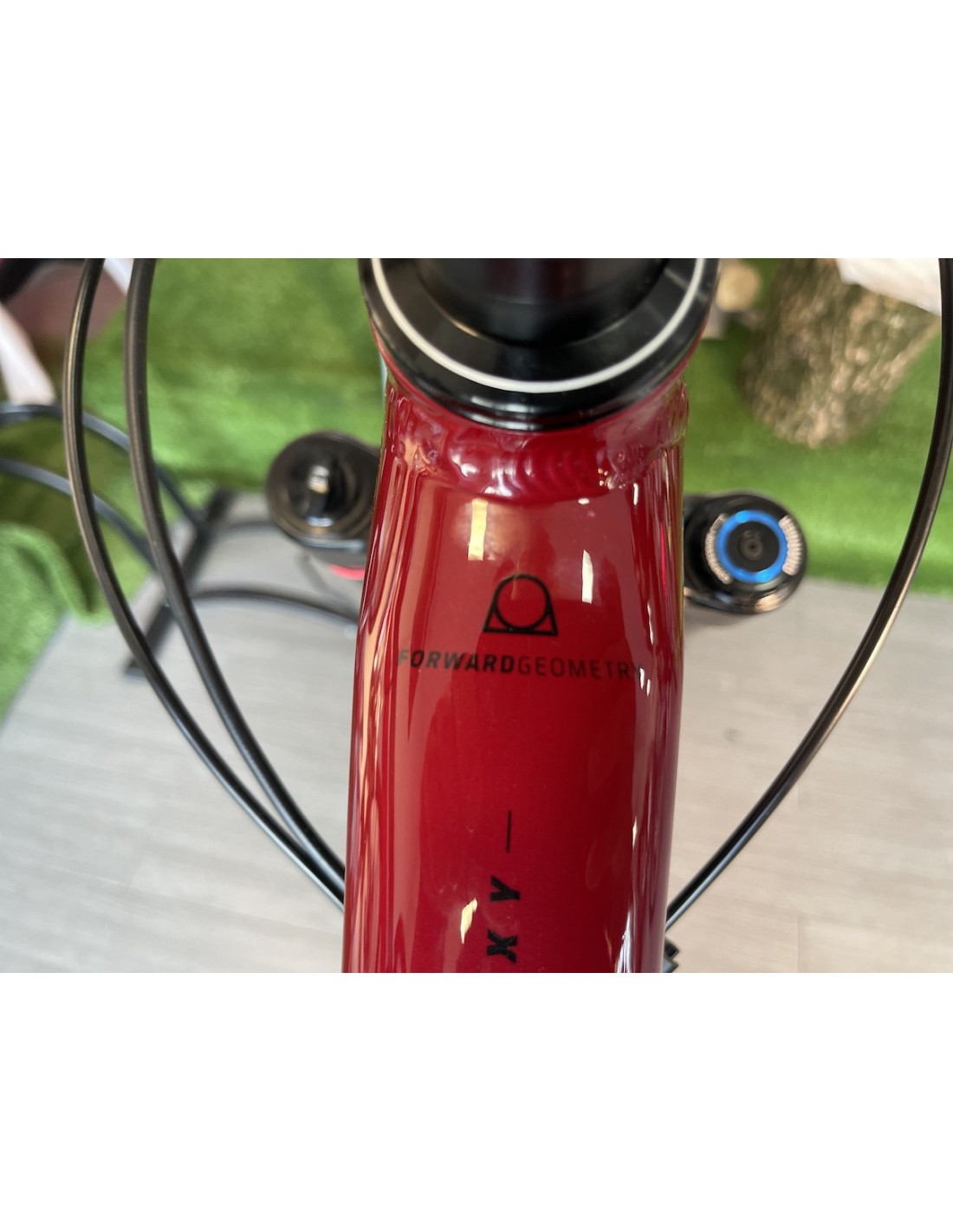

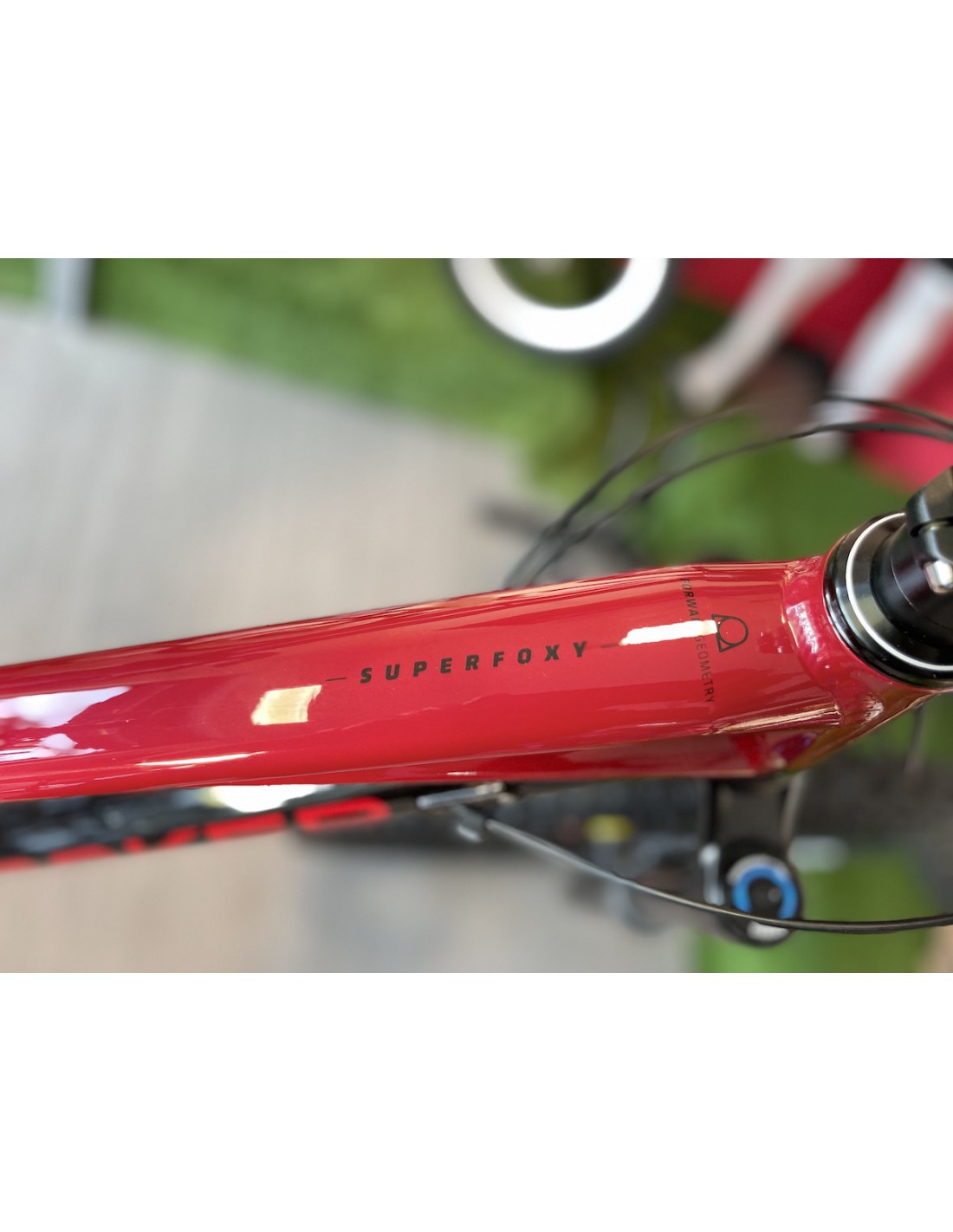

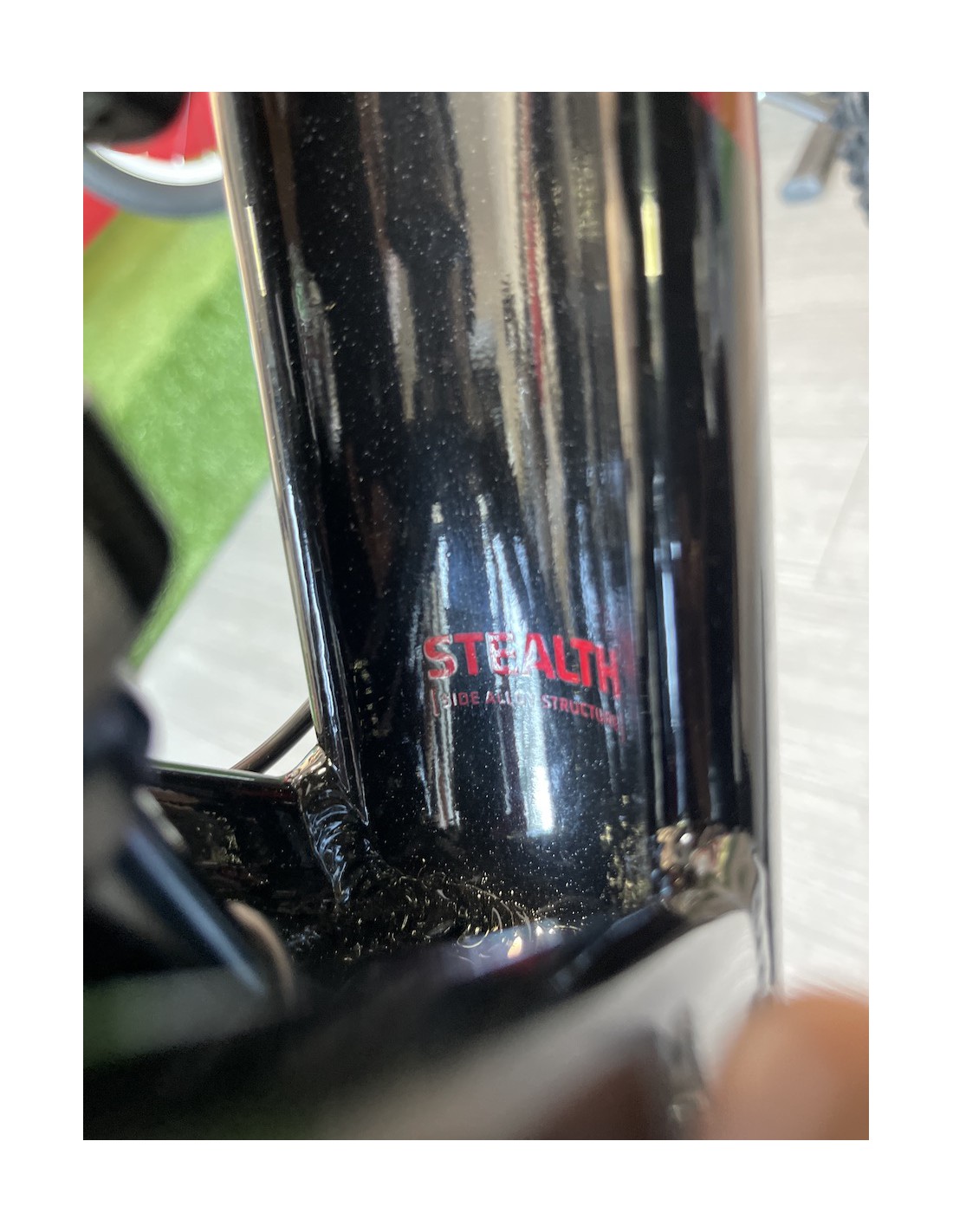

TELAIO: SuperFoxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 160mm travel, Forward Geometry, one piece Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05

TAGLIE: S: 380mm / M: 420mm / L: 470mm / XL: 510mm.

dksxkdlasòokdosòdkòlaskdòsaSERIE STERZO: Medium compression, medium rebound, air volume spacer 0.2.

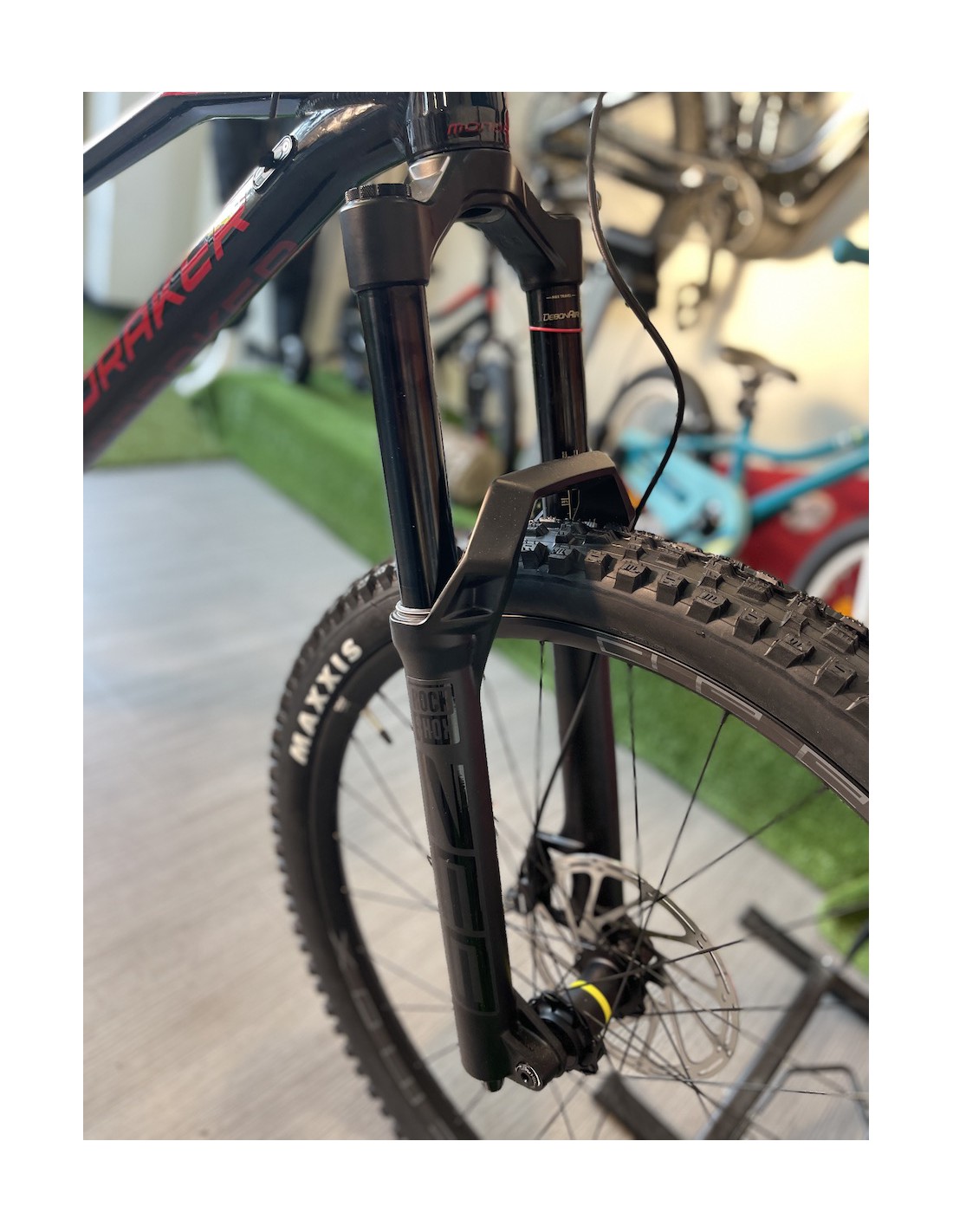

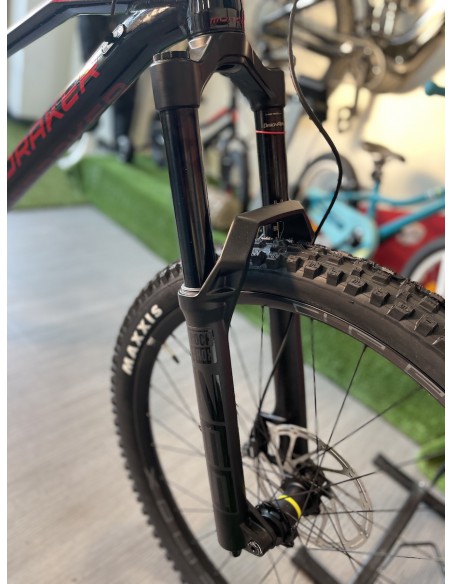

FORCELLA: RockShox Zeb RC 29, 170mm, Charger, DebonAir, tapered steerer tube, Boost 15x110mm axle, 38mm aluminum stanchions, offset 44mm. Settings: low-speed compression to lock, rebound, air preload.fdsfdsfsdw

HEADSET: ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º.

ATTACCO MANUBRIO: ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore.

MANUBRIO: ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore.

MANOPOLE: ONOFF Twin, 1lock-on, 135mm.

REGGISELLA: ONOFF Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L size: 425x150mm, XL size: 465x170mm.

SELLA: SDG BEL-AIR 3.0, LPU foam, steel rails.

FRENO ANTERIORE: SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.

FRENO POSTERIORE: SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.

LEVE FRENI: SRAM G2 R, tool-free reach adjust.

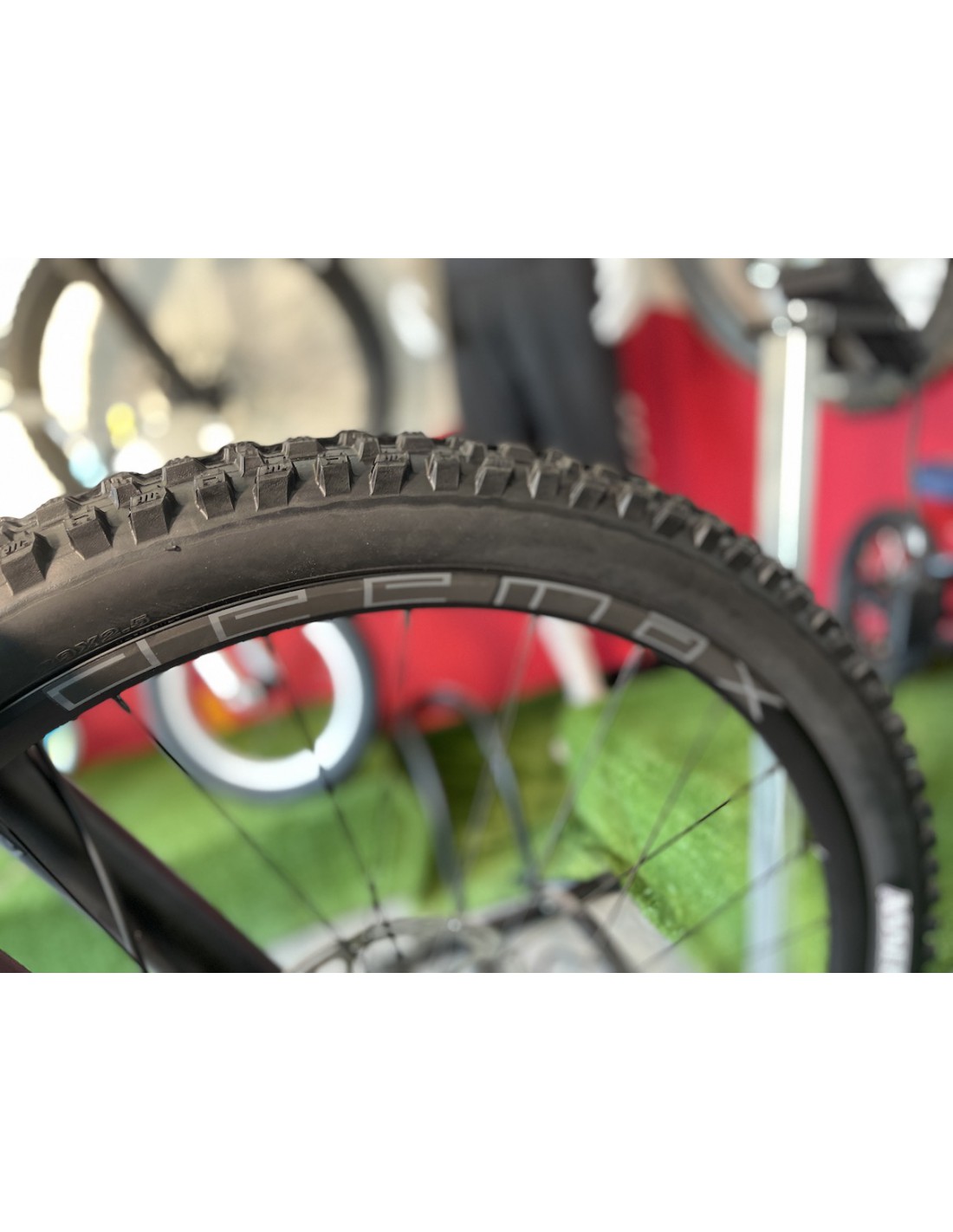

CERCHI: Mavic Custom Deemax 29, 28mm internal width, Maxtal welded rim, tubeless ready, 28 spokes.

• TELAIO: SuperFoxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 160mm travel, Forward Geometry, one piece Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05
• TAGLIE: S: 380mm / M: 420mm / L: 470mm / XL: 510mm.

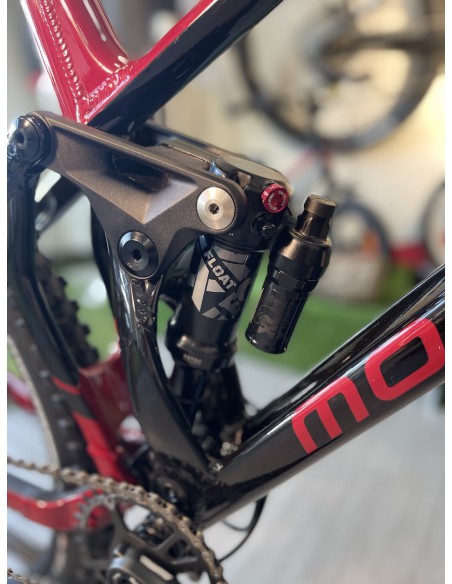

• AMMORTIZZATORE POSTERIORE: Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings.
• SERIE STERZO: Medium compression, medium rebound, air volume spacer 0.2.
• FORCELLA: Fox 38 performance , 170mm, . Settings: low-speed compression to lock, rebound, air preload.
• HEADSET: ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º.
• ATTACCO MANUBRIO: ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore.
• MANUBRIO: ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore.
• MANOPOLE: ONOFF Twin, 1lock-on, 135mm.
• REGGISELLA: ONOFF Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L size: 425x150mm, XL size: 465x170mm.
• SELLA: SDG BEL-AIR 3.0, LPU foam, steel rails.
• FRENO ANTERIORE: SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.
• FRENO POSTERIORE: SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.
• LEVE FRENI: SRAM G2 R, tool-free reach adjust.
• CERCHI: Mavic Custom Deemax 29, 28mm internal width, Maxtal welded rim, tubeless ready, 28 spokes.
• RAGGI: Mavic J-bend duble butted.
• MOZZO ANTERIORE: Mavic, Boost 15x110mm, IS 6 bolts.
• MOZZO POSTERIORE: Mavic, SuperBoost 12x157mm, ID360 Ratched system, IS 6 bolts.
• PNEUMATICO ANTERIORE: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead.
• PNEUMATICO POSTERIORE: Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead.
• GUARNITURA: Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm.
• CORONA: 32T, CNC-machined alloy, X-SYNC 2.
• MOVIMENTO CENTRALE: SRAM DUB BSA, sealed bearings, 73mm.

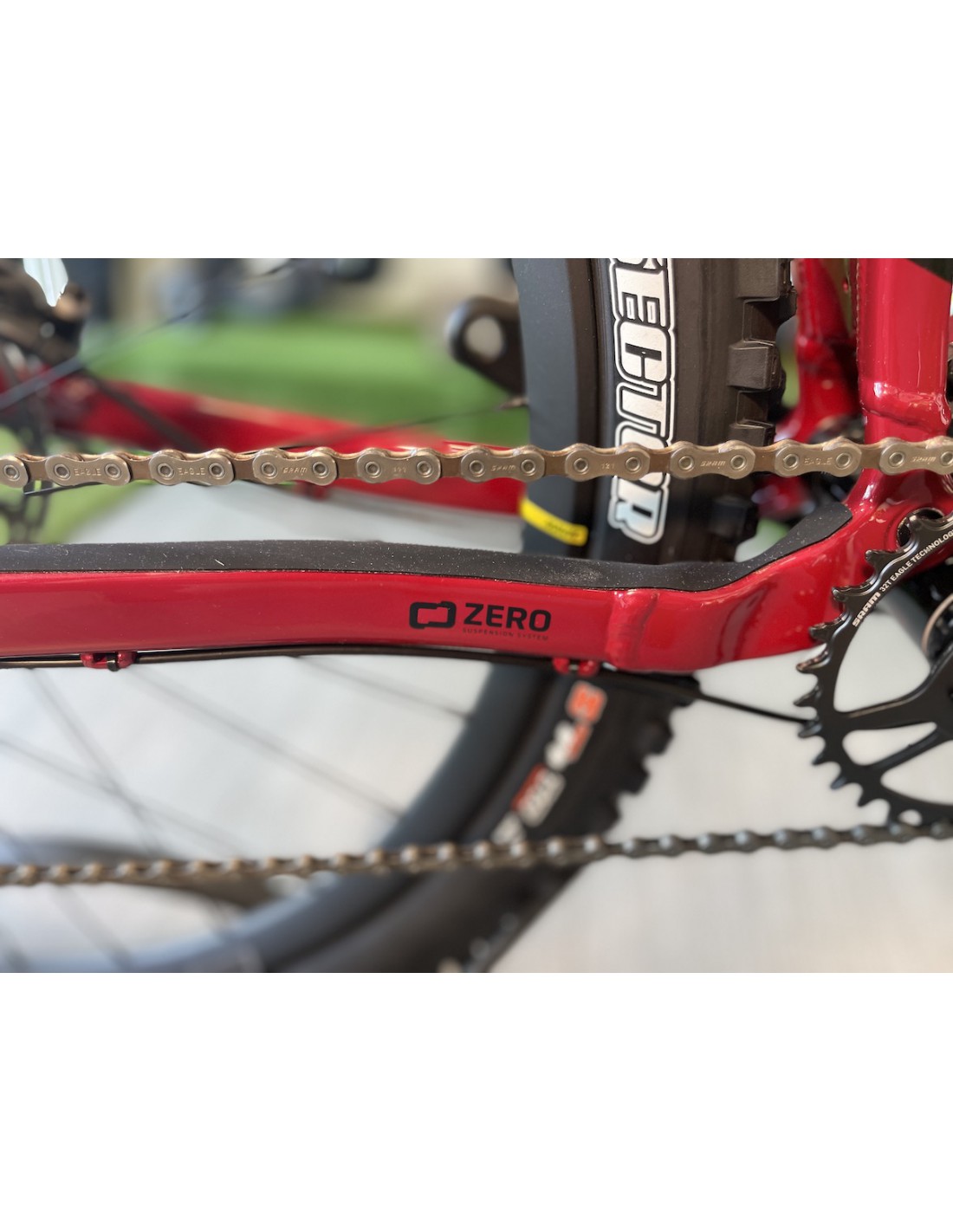

• CATENA: SRAM SX Eagle, 12s, Powerlock.
• DERAGLIATORE POSTERIORE: SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1.
• LEVE CAMBI: SRAM Trigger SX Eagle, 12s, X-Actuation 1:1.
• CASSETTA: SRAM PG-1210, 11-50T, 12s.
• DERAILLEUR HANGER: Mondraker M068.

: SuperFoxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 160mm travel, Forward Geometry, one piece Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05

TAGLIE: S: 380mm / M: 420mm / L: 470mm / XL: 510mm.

AMMORTIZZATORE POSTERIORE: Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings.

SERIE STERZO: Medium compression, medium rebound, air volume spacer 0.2.

FORCELLA: RockShox Zeb RC 29, 170mm, Charger, DebonAir, tapered steerer tube, Boost 15x110mm axle, 38mm aluminum stanchions, offset 44mm. Settings: low-speed compression to lock, rebound, air preload.

HEADSET: ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º.

ATTACCO MANUBRIO: ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore.

MANUBRIO: ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore.

MANOPOLE: ONOFF Twin, 1lock-on, 135mm.

REGGISELLA: ONOFF Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L size: 425x150mm, XL size: 465x170mm.

SELLA: SDG BEL-AIR 3.0, LPU foam, steel rails.

FRENO ANTERIORE: SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.

FRENO POSTERIORE: SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.

LEVE FRENI: SRAM G2 R, tool-free reach adjust.

CERCHI: Mavic Custom Deemax 29, 28mm internal width, Maxtal welded rim, tubeless ready, 28 spokes.

RAGGI: Mavic J-bend duble butted.

MOZZO ANTERIORE: Mavic, Boost 15x110mm, IS 6 bolts.

MOZZO POSTERIORE: Mavic, SuperBoost 12x157mm, ID360 Ratched system, IS 6 bolts.

PNEUMATICO ANTERIORE: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead.

PNEUMATICO POSTERIORE: Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead.

GUARNITURA: Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm.

CORONA: 32T, CNC-machined alloy, X-SYNC 2.

MOVIMENTO CENTRALE: SRAM DUB BSA, sealed bearings, 73mm.

CATENA: SRAM SX Eagle, 12s, Powerlock.

DERAGLIATORE POSTERIORE: SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1.

LEVE CAMBI: SRAM Trigger SX Eagle, 12s, X-Actuation 1:1.

CASSETTA: SRAM PG-1210, 11-50T, 12s.

DERAILLEUR HANGER: Mondraker M068.RAGGI: Mavic J-bend duble butted.

MOZZO ANTERIORE: Mavic, Boost 15x110mm, IS 6 bolts.

MOZZO POSTERIORE: Mavic, SuperBoost 12x157mm, ID360 Ratched system, IS 6 bolts.

PNEUMATICO ANTERIORE: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead.

PNEUMATICO POSTERIORE: Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead.

GUARNITURA: Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm.

CORONA: 32T, CNC-machined alloy, X-SYNC 2.

MOVIMENTO CENTRALE: SRAM DUB BSA, sealed bearings, 73mm.

CATENA: SRAM SX Eagle, 12s, Powerlock.

DERAGLIATORE POSTERIORE: SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1.

LEVE CAMBI: SRAM Trigger SX Eagle, 12s, X-Actuation 1:1.

CASSETTA: SRAM PG-1210, 11-50T, 12s.

DERAILLEUR HANGER: Mondraker

Mondraker M068
